Application

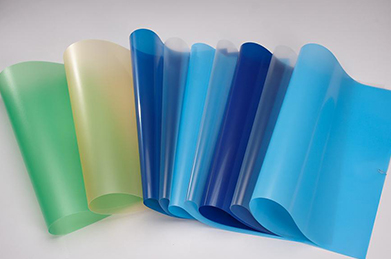

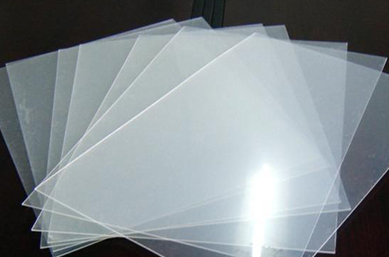

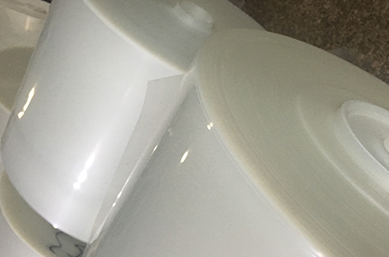

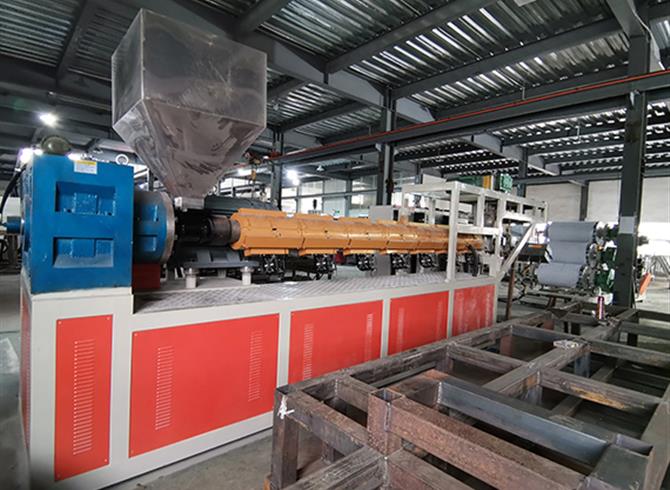

The machine produces PP or PS sheets, which is used for producing plastic products, such as cups, food containers, trays, dishes, bowls, lids and etc.
The technical parameters
|
Model |
SMC110-900 |
SMC115-900 |
SMC120-900 |
|
Material |
PP,PS |
PP,PS |
PP,PS |
|
Max. Sheet Width |
≦800mm |
≦800mm |
≦800mm |
|
Sheet Thickness |
0.25-2.0mm |
0.25-2.5mm |
0.25-2.5mm |
|
Screw Diameter |
110mm |
115mm |
120mm |
|
Roller Specification |
Ø350 x900 mm x3 |
Ø400 x900 mm x3 |
Ø500 x900 mm x3 |
|
Ratio of Screw L/D |
35:1 |
35:1 |
35:1 |
|
Capacity |
175-190kg/h |
235-255kg/h |
310-335kg/h |
|
Rated Power |
100kw |
125kw |
150kw |
|
Voltage |
AC 380V,50Hz，Three-phase Four-Wire |
AC 380V,50Hz, Three-phase Four-Wire |
AC 380V,50Hz，Three-phase Four-Wire |
|
Dimension |
L14000xW2300xH2500mm |
L14000xW2600xH2600mm |
L14000xW2600xH2600mm |
|
Weight |
6.2T |
7.5T |
9.3T |
