Brief Introduction

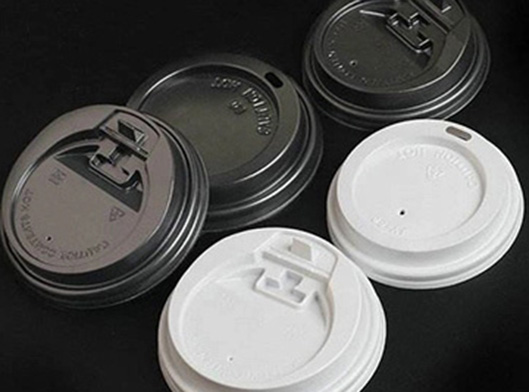

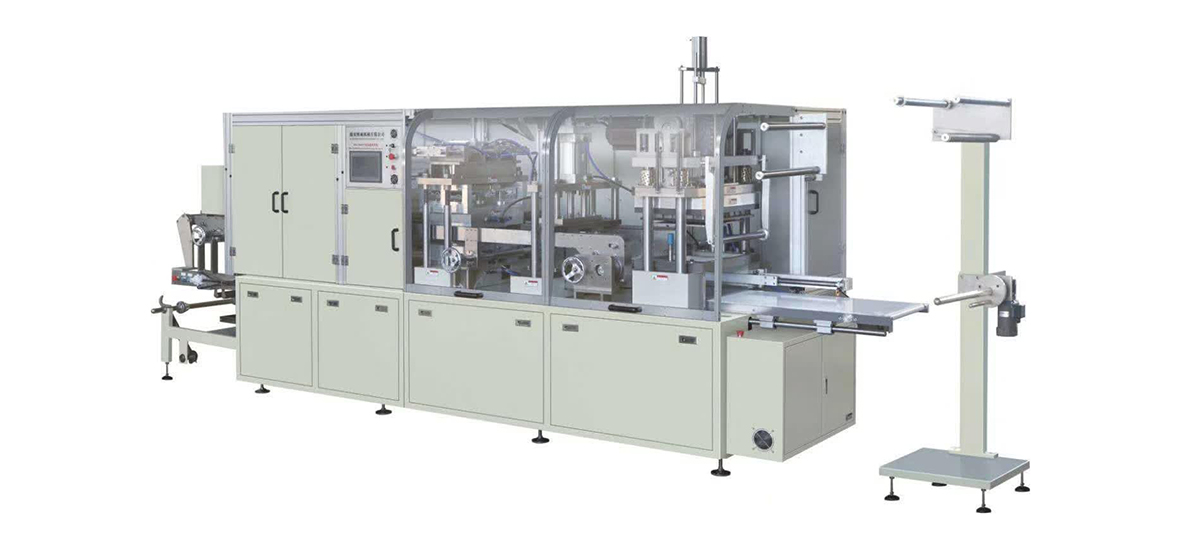

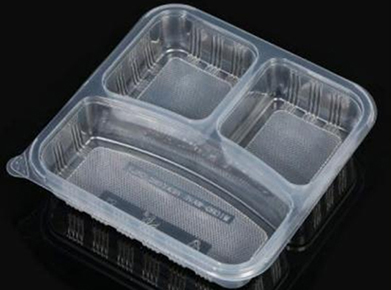

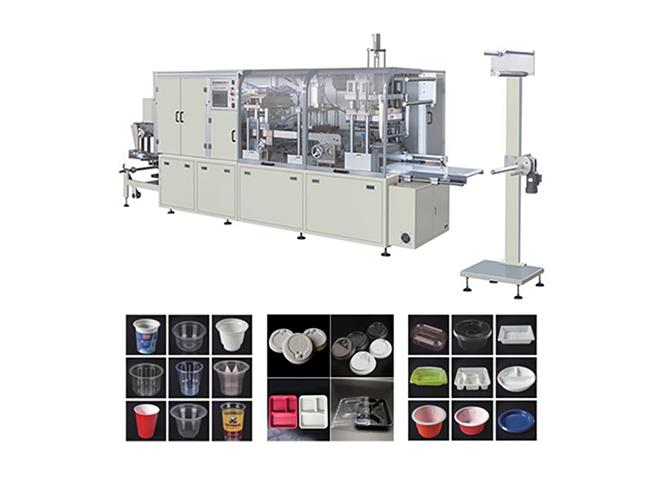

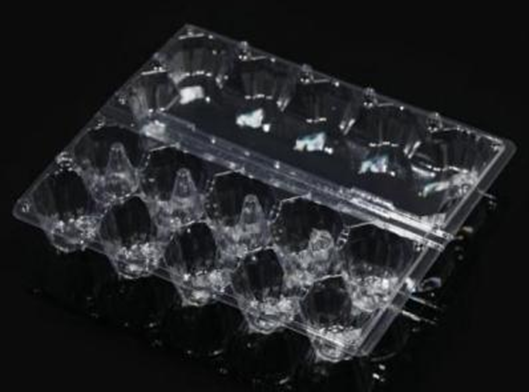

SMC-DB520 series model is 3 station thermoforming machine, which effectively solves the problem of PP/PS/PET/PVC//PLA and other plastic products in the production of capital, labor input is too large, the production process is complex, and the product hygiene and safety are low This model has a wide range of uses, such as food, medicine, hardware, gifts and other plastic products such as PLA/PP/ PET/PS/PVC/PC/ABS. The equipment is stable, exquisite, and cost-effective.
The main technical parameters
|
Model |
SMC-DB520 |
|
Max Speed |
10-35times/min |
|
Max Forming Length |
530mm |
|
Max Forming Width |
350mm |
|
Max Forming Deepth |
80mm |
|
Applicable Sheet |
PP, PS,PVC,PET,PLA |
|
Sheet Thickness |
0.1-1.5mm |
|
Heating Power |
48kw |
|
Motor Power |
11kw |
|
Water Pressure |
0.2MPa |
|
Water Consumption |
0.3m³/h |
|
Air Pressure |
0.6-0.8MPa |
|
Air Consumption |
≥0.8m³/min |
|
Power Supply |
AC 380V,50Hz Three-phase four-wire |
|
Size |
5670*1880*2200mm |
|
Weight |
5.2 T |
