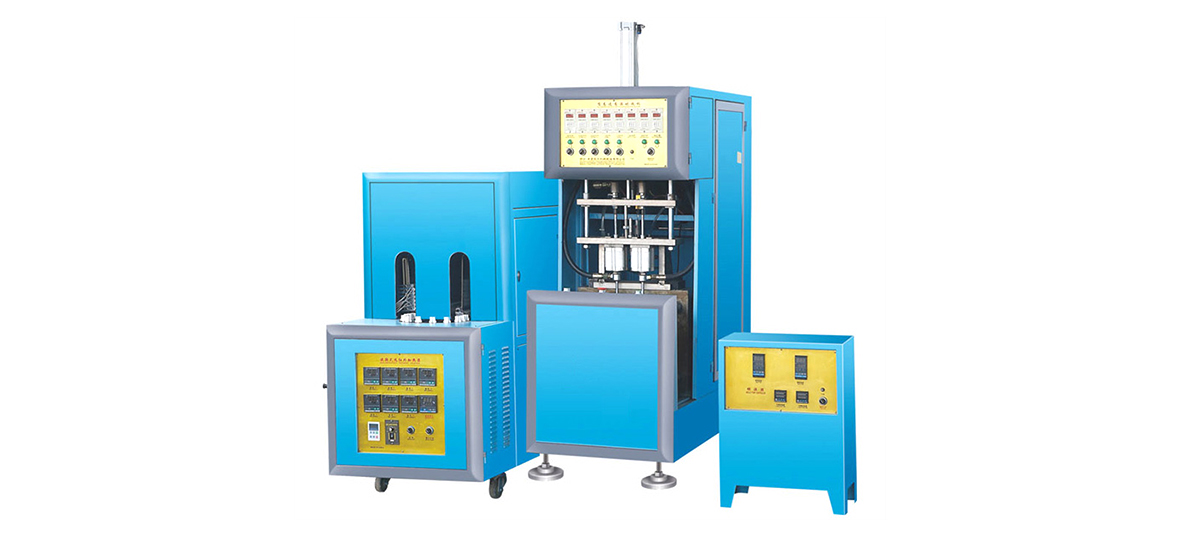

Semi-automatic bottle blowing machine adopts direct pressure, icrocomputer control, two step blowing bottle.

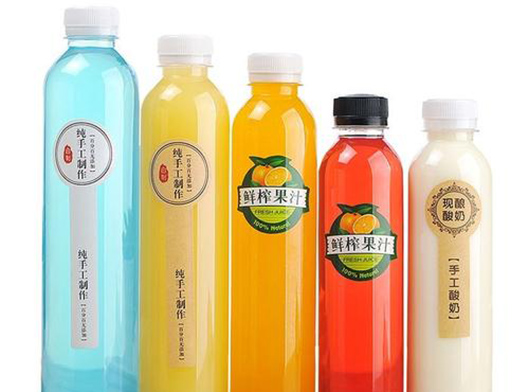

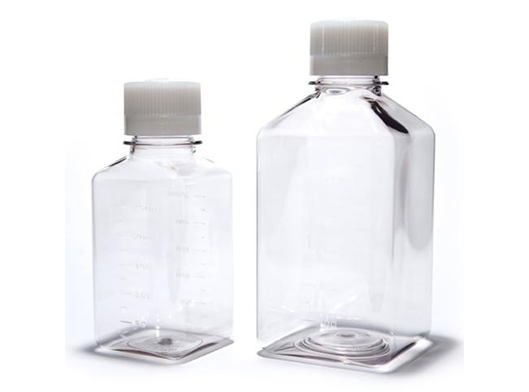

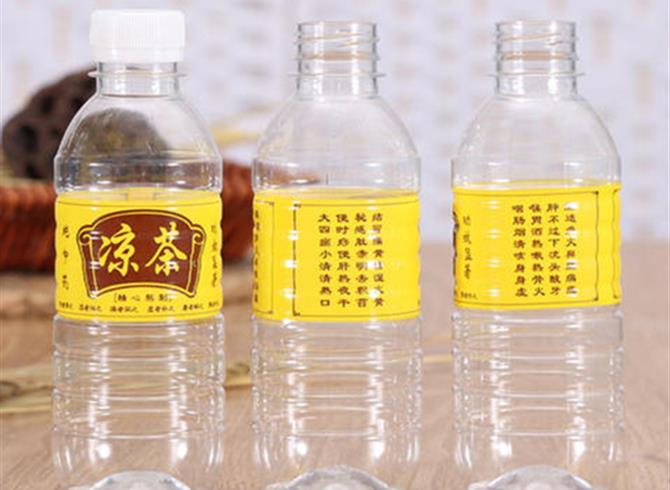

The main blow tube blank PET mineral water bottles, beverage bottles, edible oil bottles, pharmaceutical plastic bottles, pesticide bottles, cosmetic bottles, etc.
The gas path is designed to separate the gas and blowing, adopting low pressure (0.4-0.8 Mpa) mould clamping, mould locking, sealing, stretching and high pressure (3-3.5Mpa) blowing form, and the gas-liquid locking structure,not only ensure the clamping and locking action smoothly, also ensure the safety of mould and blowing quality, as a result can save the bottle perform material.
The main technical parameters
|
General Information |
SMC-A8 for hot filling |
SMC-A8 for hot filling |
|

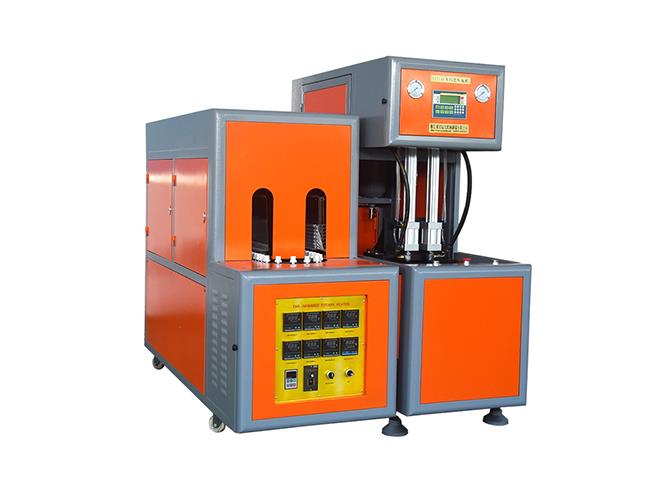

One Blower And One Heater |

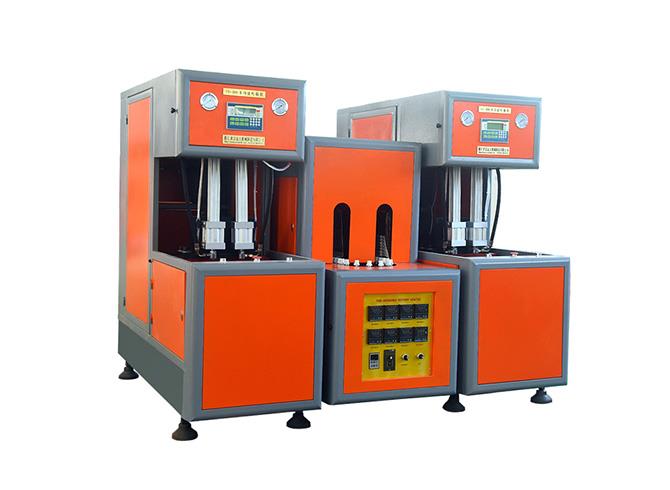

Two Blower And One Heater |
|
|
Clamping Force |
12T |
|
|
Clamping Stoke |
220mm |
|
|
Max.Stretching Stroke |
360mm |
|
|
Number of Cavities |
2 Cavity |
2 Cavity 2Pcs |
|
Theoretical Output |
0.3-2.5L:350-600 BPH |
0.3-2.5L:550-1100 BPH |
|
Max.Mould Thickness |
250mm |
|
|
Mould plate size |
490x410mm |
|
|
Voltage Standard |
380v/3PH/50Hz or special order |
|
|
Total Power(Full Loaded) |
15-25KW |
25-30KW |
|
Min air compressor |
1.2m3/min |
1.6m3/min |
|
Net dimension & Weight(LxWxH) |
||
|
Blow Molding Machine |
160x60x175cm |
160x60x175cm 2Pcs |
|
Pre-heater |
180x70x140cm |
|
|
Mould temperature |
50x31x70 |
160x60x175cm 2Pcs |
|
controler |
||
|
Net Weight |
1.2T |
2.0T |
|
Container |
||
|
Container Volume |
0.3-2.5L |
|
|
Neck Diameter Range |
16-60mm |
|
|
Container Diameter |
140mm |
|
|
Container Height |
380mm |
|
