The technical parameters
|

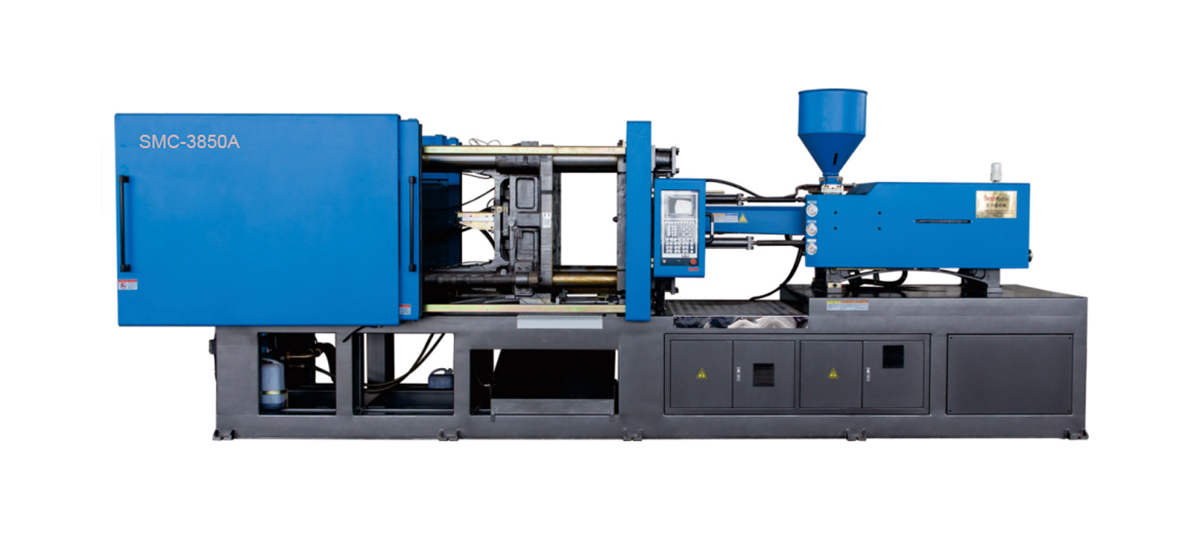

MODEL |
SMC-3850 |
||
|

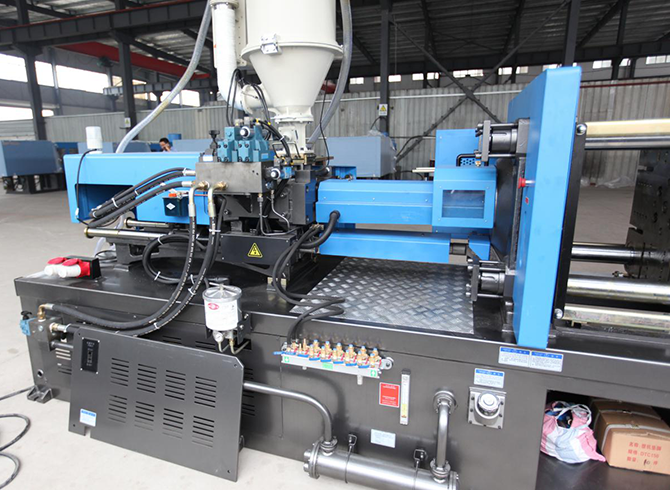

INJECTION UNIT |
|
A |
B |
|
Screw diameter |
mm |
63 |
65 |
|
Shot size(theoretical) |
Cm³ |
1120 |
1192 |
|
Shot weight |
g |
1008 |
1072 |
|
Injection pressure |
Mpa |
175 |
165 |
|
Injection rate |
g/s |
320 |
340 |
|
Screw L/D ratio |
L/D |
22.7 |
22 |
|
Screw speed |
r.p.m |
0-160 |
|
|
Nozzle Diameter |
Srmm |
20 |
|
|

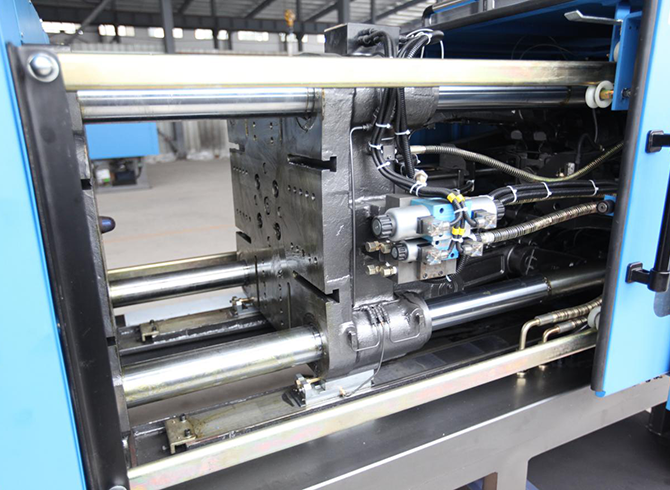

CLAMPING |
|
|
|
|
Clamp tonnage |
KN |
3850 |
|
|
Toggle stroke |
mm |
660 |
|
|
Mould Thickness |
mm |
280-680 |
|
|
Space between tie-bars |
mm |
680X680 |
|
|
Ejector stroke |
mm |
160 |
|
|
Ejector tonnage |
KN |
80 |
|
|
Ejector number |
Piece |
13 |
|
|
Hole Diameter |
mm |
160 |
|
|
OTHERS |
|
|
|
|
Heat power |
KW |
17.5 |
|
|
Max. pump pressure |
MPa |
16 |
|
|
Pump motor power |
KW |
30 |
|
|
Valve Size |
mm |
25 |
|
|
Machine dimension |
m |
7.0X2.2X2.0 |
|
|
Machine weight |
t |
11.5 |
|
|
Oil tank capacity |
L |
400 |
|
