Brief Introduction

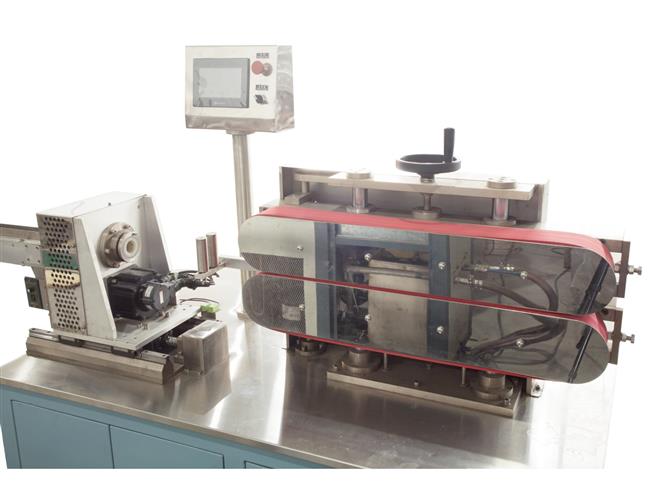

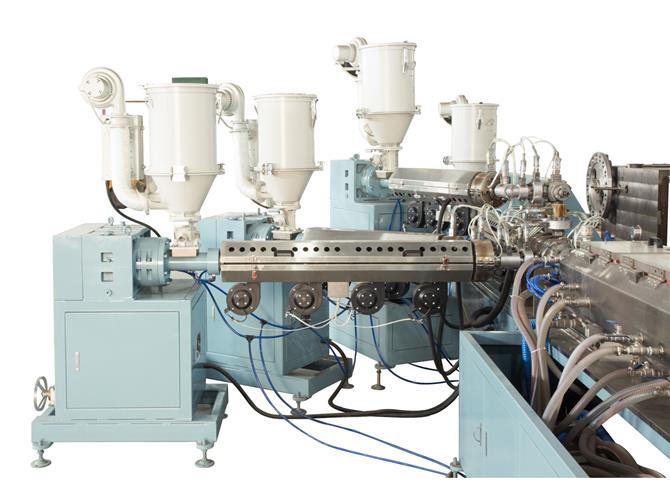

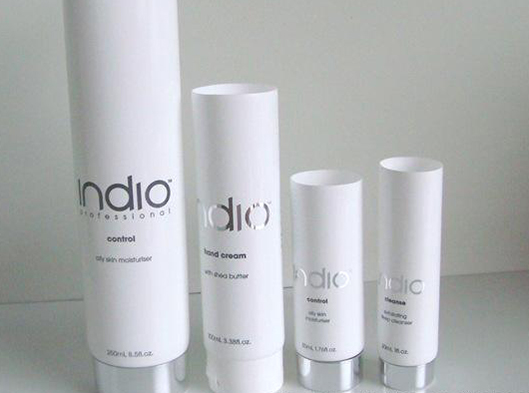

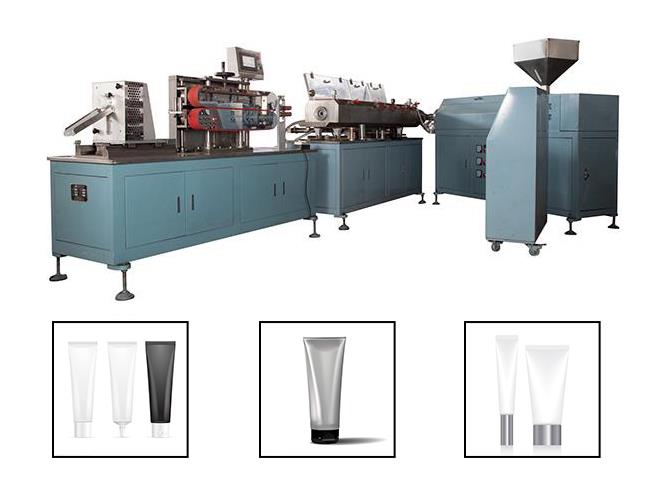

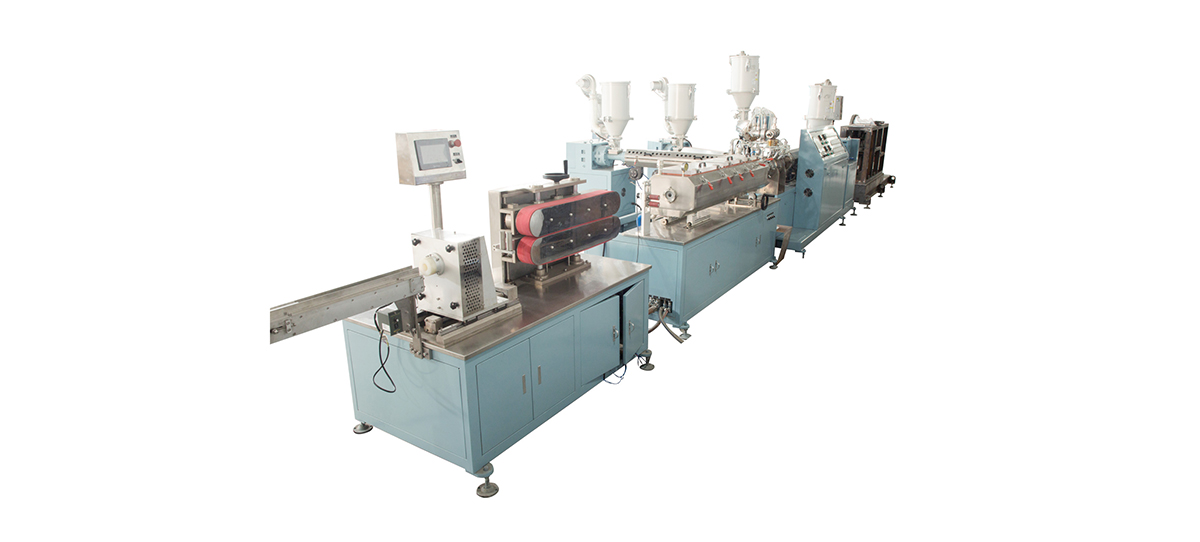

Multi-layer extruder & cutting machine adopts twin-screw extrusion method, and the surface of the tube produced is more delicate. It is widely used in the packaging of cosmetics, facial cleanser, hand cream and other cream products.
The features of co-extrusion tube
Plastic material has its own characters .In co-extrusion system , we use and combine several kinds of materials .Therefore , the characters of single layer tube can’t compete with the complex characters of co-extrusion tube.
1.Glossy surface ( using :EVOH/RESIN/PE)
2.Extensive color combination ( using :PE+PEARL/PE+PLGMENT)
3.Excellent barrier property （using : PE/TIE RESIN/EVOH/TIE RESIN/PE）
4.Scratch and dust free (using :LDPE/LDPE/LLDPE)

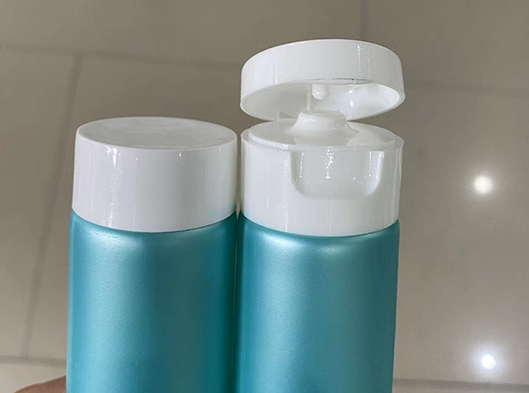

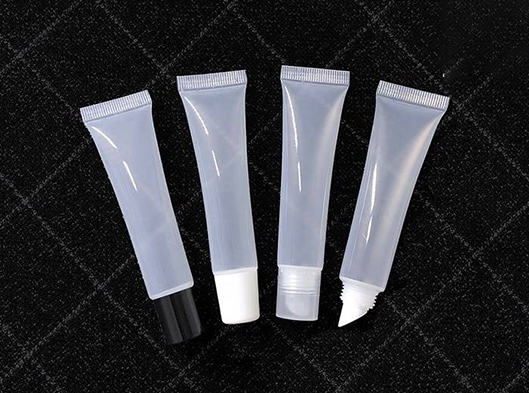

Co-extrusion is used on pesticide container, toothpaste ,side window ,multicolor ,long preservative cosmetic…etc.
Main Specifications
|
Screw Dia(inner) : |
φ50mm,L/D:30/1 |
|
Screw Dia(resin) : |
φ40mm,L/D:28/1 |
|
Screw Dia(EVOH) : |
φ35mm,L/D:26/1 |
|
Screw Dia(outer) : |
φ45mm,L/D:32/1 |
|
Screw Type : |
Full Flight |
|
Motor : |
7.5HP×1pcs, 5P×2cs, 10×1pcs |
|
Water Consumption: |
60L/min |
|
Power Consumption: |
95.5kw |
|
Extrusion Linear Speed: |
8m/min(φ50mm) |
|
Cutting Speed: |
100pcs/min |
|
Tube Dia Range: |
φ19～60mm |
|
Machine Size: |
6800×3500×2300mm |
|
Total New Weightx : |
approx 5200kg |
