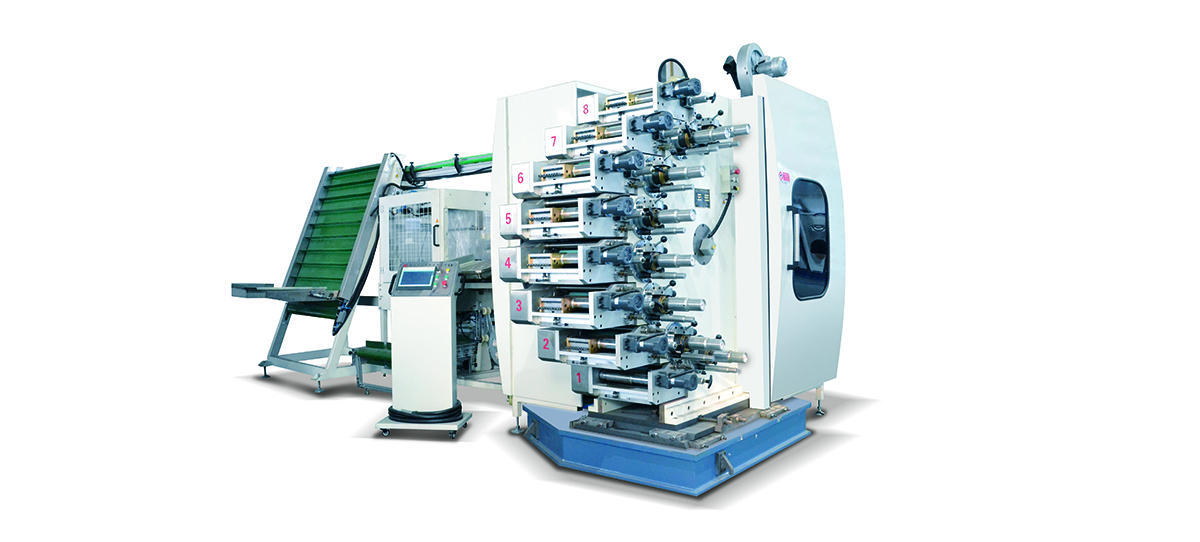

Brief Introduction
The machine adopts relief printing two-side color words and patterns in plastic products surface with letterset method. It is widely used for printing drink cup, milk tea cup, yoghurt cup, ice-cream cup, fast-food bowl, and other cylindrical or conical plastic products, 8 colors can make the pattern more colorful and realistic.
Function
1.Adopting the advanced international printingtechnology.
2.Designed by engine, electricity and gas.
3.Adopting PLC controller, high-speed printing, fast-speed changed mold, proofread board, automatic feeding cups, collecting cups, counting and collecting the depose cups.
4.Easy to operation.
5.Adopt the offset printing technology realize to print the design, word, logo and etc. On the surface of plastic containers (columnar shape).
6.Widely used to print beverage cups, yogurt cup, ice cream cup, lunch box and etc.
The main technical parameters
| Printing object | |
| Model | SMC-8C |
| Qty of color | 8 |
| Printing material | PP, PS, PET, HDPE etc. |
| Max. printing diameter(mm) | φ168 |
| Maximum cup (bowl, tube, barrel) edge diameter (mm) | φ200 |
| Max. printing height(mm) | 160 |
| Maximum cup (bowl, tube, barrel) height (mm) | 235 |
| Max. printing bevel(︒) | 16 |
| Max. designed speed(pcs/min) | 360 |
| Drive system | Machanical drive |
| Printing large roller diameter | φ1120 |
| Number of cup molds | 8 |
| Air pressure（Mpa） | 0.6 |
| Maximum air consumption（m³/min） | 1 |
| UV power(KW) | 2~6 |
| Corona power（KW） | 1 |
| Total power（KW） | 23 |
| Power supply (single phase / three phase) | 3 phase |
| Dimensions = length * width * height (m) | 7*3*3.4 |
| Weight (tons) | 8.3 |
