Brief Introduction

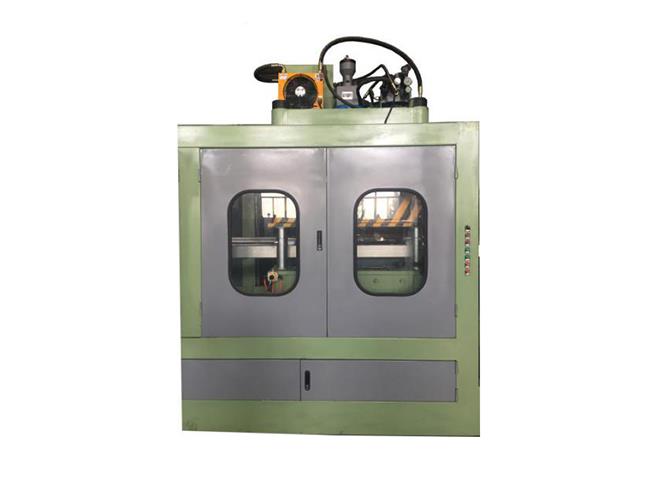

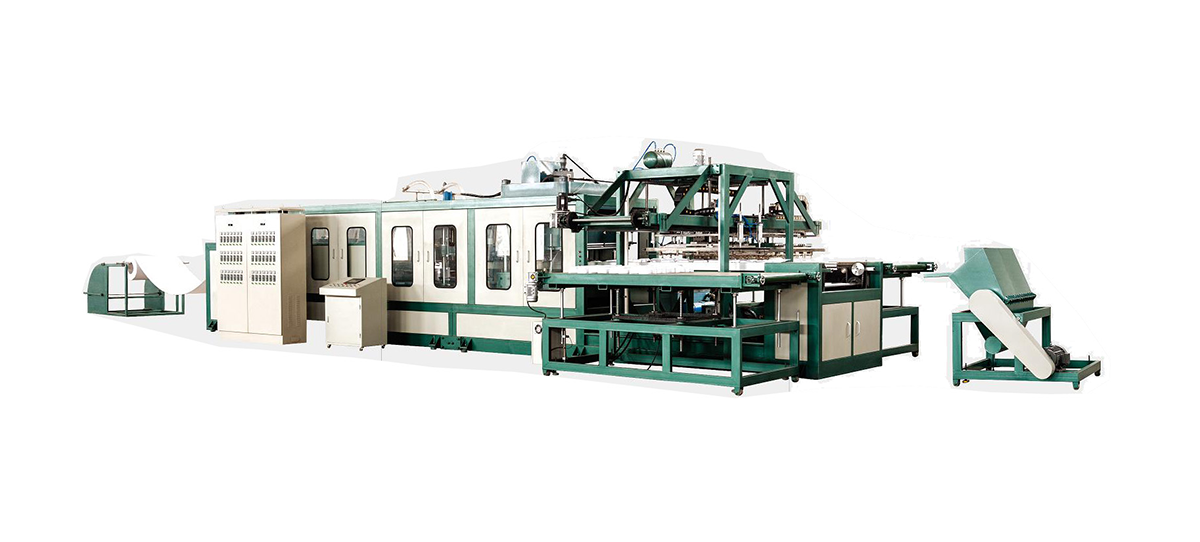

Fully Auto Forming Machine with Robot Hand(SMC-1100/1250)
PS/PSP(Polystyrene) Foam Sheet Machinery adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off, it is winding to finished PS foam sheet rolls. After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging container such as fast food box, aquatic plate, supermarket tray, cake tray, KT board, instant noodle bowl, foam tray etc. It is widely used in the packing of food, fruit, advertising, industrial products and so on. This equipment adopts high speed non-stop hydraulic filter changer and PLC controller, it is easy for operation.
The main technical parameters
|
Parameter |
Unit |
SMC-640/850 |
SMC-1100/1250 |
|
Forming area |
mm |
640*850 |
1100*1250 |
|
Cutting off height |
mm |
160 |
160 |
|
Production efficiency |
S/Die |
3-8 |
3-8 |
|
Installed Dimension |
M |
11*3.5*2.5 |
15*5*2.5 |
|
Installation Power |
Kw |
100 |
180 |
|
Power supply |
|
3Phase 380V 50HZ |
3Phase 380V 50HZ |
Production Process
